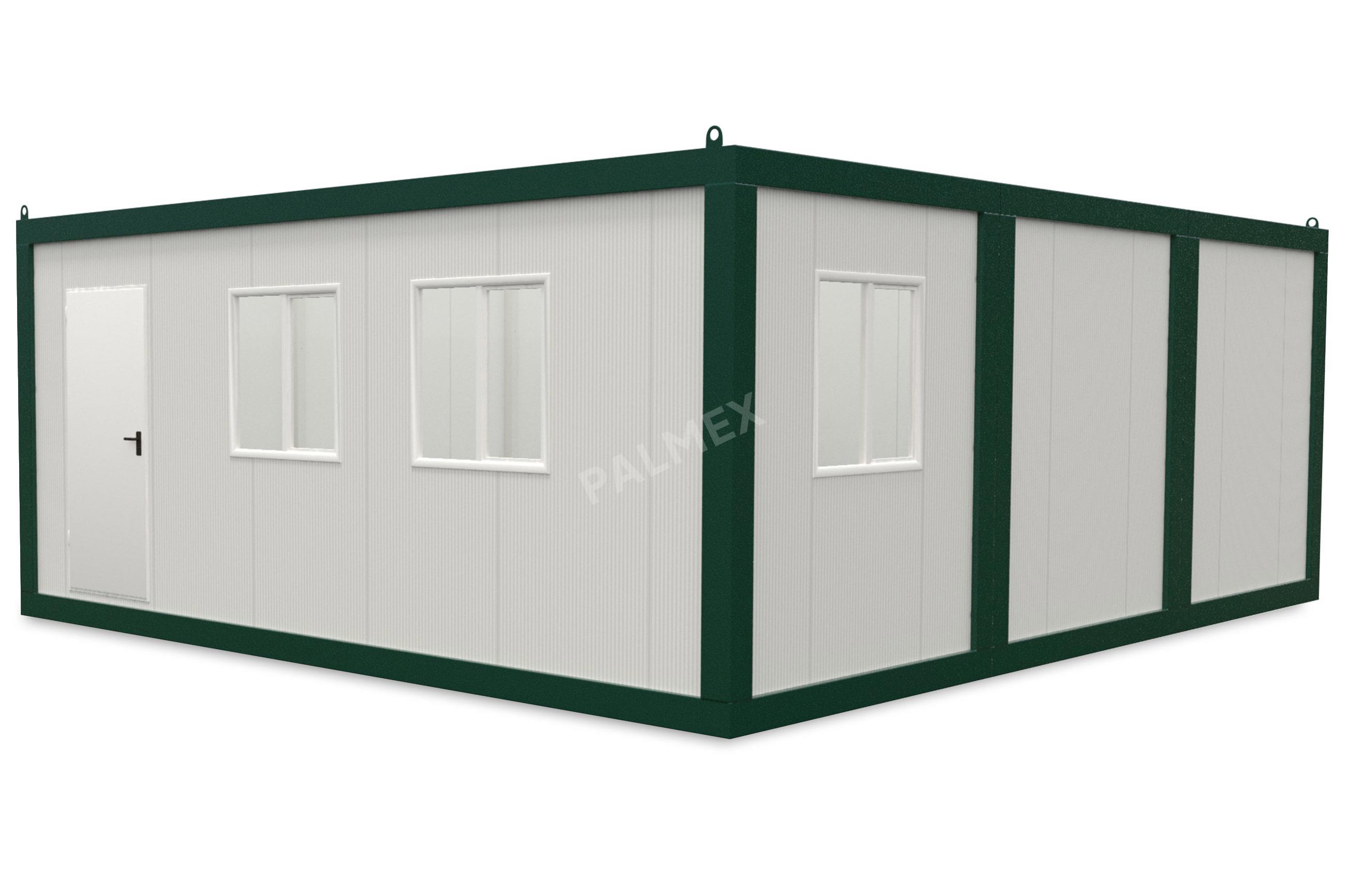

This 6x7.2m HI-FIX Modular Container 1 Door 3 Windows is manufactured to be easy to use and stacked, to create personalized configurations based on your company's needs. Whatever the purpose of the project (modular container offices, storage rooms, temporary housing), modular containers offer remarkable adaptability.
- reinforced corrugated combined board (0.8 mm DX51);
- 3 mm cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
- 19 mm Moisture resistant Chipboard;
- Tarkett 2 mm PVC linoleum for intense traffic;
Breaking strain: 400 kg/m².
Roof, top to bottom made of:- 2 mm cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
- double-glazed galvanized sheet (0.5 mm);
- anti-condensation coating;
- 100 mm mineral wool, C1 ISOVER/Ursa norm;
- sandwich board 40 mm polyurethane.
Breaking strain: 250 kg/m². Support beams are cold profiled, made of galvanized sheet, 2 mm thickness. The superior frame has a section which allows the intake of rainwaters and evacuation through the support beams.
Electrical installation
On the outside, it is made of:- 1 CEE 220-230 V tripolar socket with IP 65.
- automatic fuses box;
- 6 PT SHUKO double sockets;
- 3 PT SHUKO switch;
- 6 interior 18 W LED lamp;
- type C 1 RAL 9002 40 mm sandwich polyurethane board (guaranteed for 10 years);
- 1 1000×2050 mm metallic RAL 9002 NINZ UNIVER door;
- 3 1000x1000 mm WHITE PVC tilt opening windows (profile 6 KMG chambers);
Production lasts approximately
5 working days
Transport in
3 working days
Unloading takes
90 min on site
The 6x7.2m option has
space for 7 offices
Easy to handle
You will only concentrate
on your business plan
Frequently asked questions
Below, you will find the most frequently asked questions.
Plisse Panel
- Exterior micro nerves for a higher resistance
- Electrostatic field painting
- DX51 resistant steel
- Thermal efficiency with high yield
Windows
- KMG Profile 6 chambers Austria
- 4 mm+ 4mm Saint Gobain double glazing window
- VORNE hardware for opening-closing
- Tilt opening
Ninz metallic doors
- Made of processed “Sendzimir” hold galvanized sheet, folded by pressing
- Removable tilt system for applying on finished floor
- Interior structure made of undulated honeycomb-type fibre firmly fixed on the board
- Detachable threshold for assembly without threshold
Linoleum
- Class AC4 quality linoleum for heavy traffic
- Available in 2 colours Universe UN03 and UN09
- Non-slip
Scame exterior socket
- IP65 2P+N 16 A single-phase power supply
- Kick resistance
- CLICK-IN rapid use
Differential fuse box
The fuse box is a panel where all the modular appliances are installed, with the purpose of ensuring the distribution of electrical energy. Also here, you will find the protection, measure, and command elements of the electrical circuits.
The fuse box contains several elements: DIN rail, protective earth bar and neutral conductor.
Quality LED lamps
- Applied simple and light catch
- High degree of 180 degree light emission
- Neutral light, easy on the eyes
Plisse Panel thickness
- You can choose the thickness of the exterior walls:
- - 60 mm
- - 80 mm
- -100 mm
Container width
- The containers can also be custom-made with a 3m width so that you can benefit from extra space
Window with rollo shutter blind/hidden
- 1000x1000 mm window size
- white PVC
Cooling systems
- Economy HABITAT 9000 BTU Air conditioning system
- Premium GREE 12000 BTU Air conditioning system
Heating systems
- Economy electrical convector
- TESY premium electrical convector
Window
- Extra window
- PVC panel, Wood finish
Window rollers
- PVC exterior roller
- Aluminium exterior roller
On the inside
- Storage shelves
- Metallic structure
- MDF shelves
