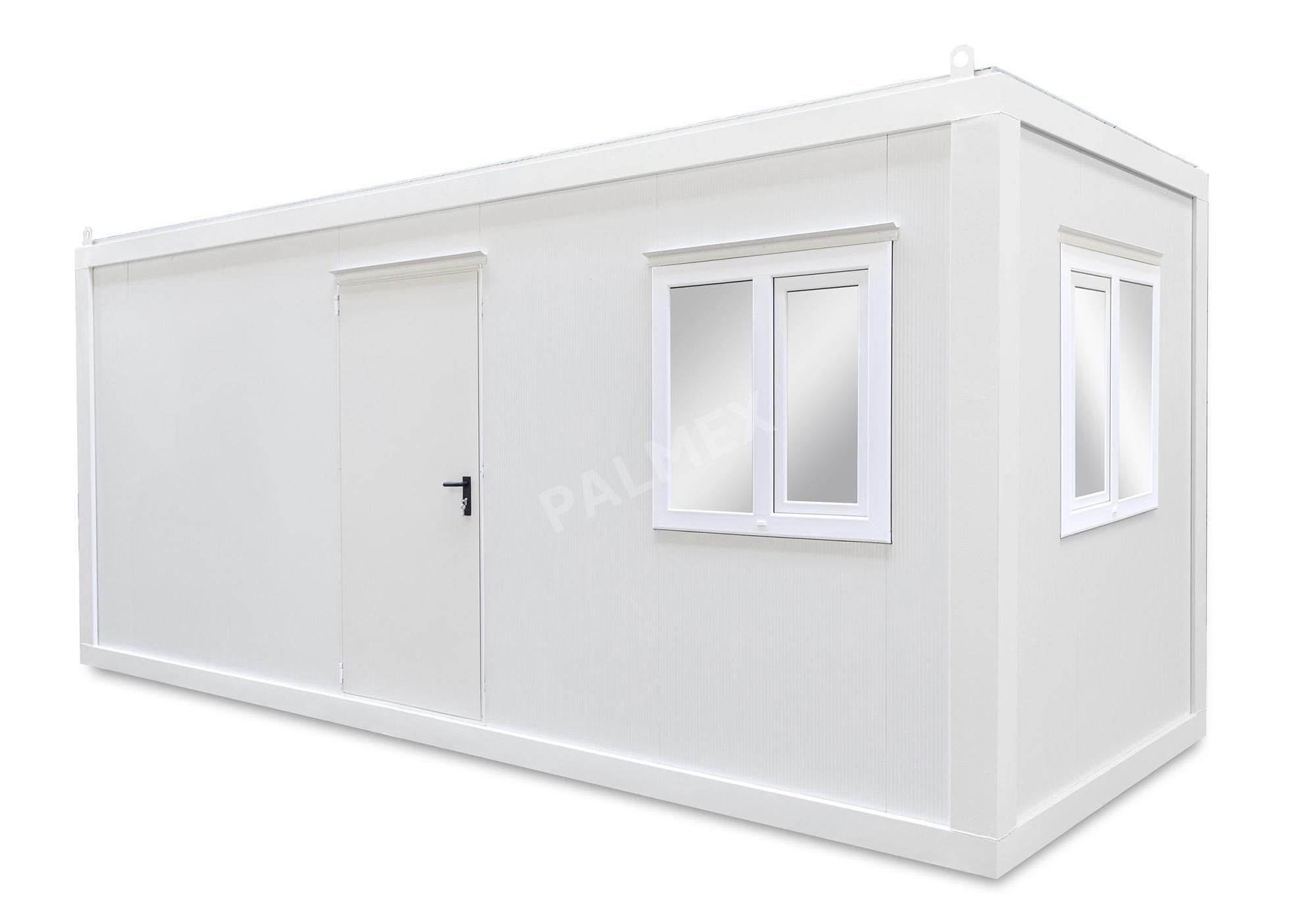

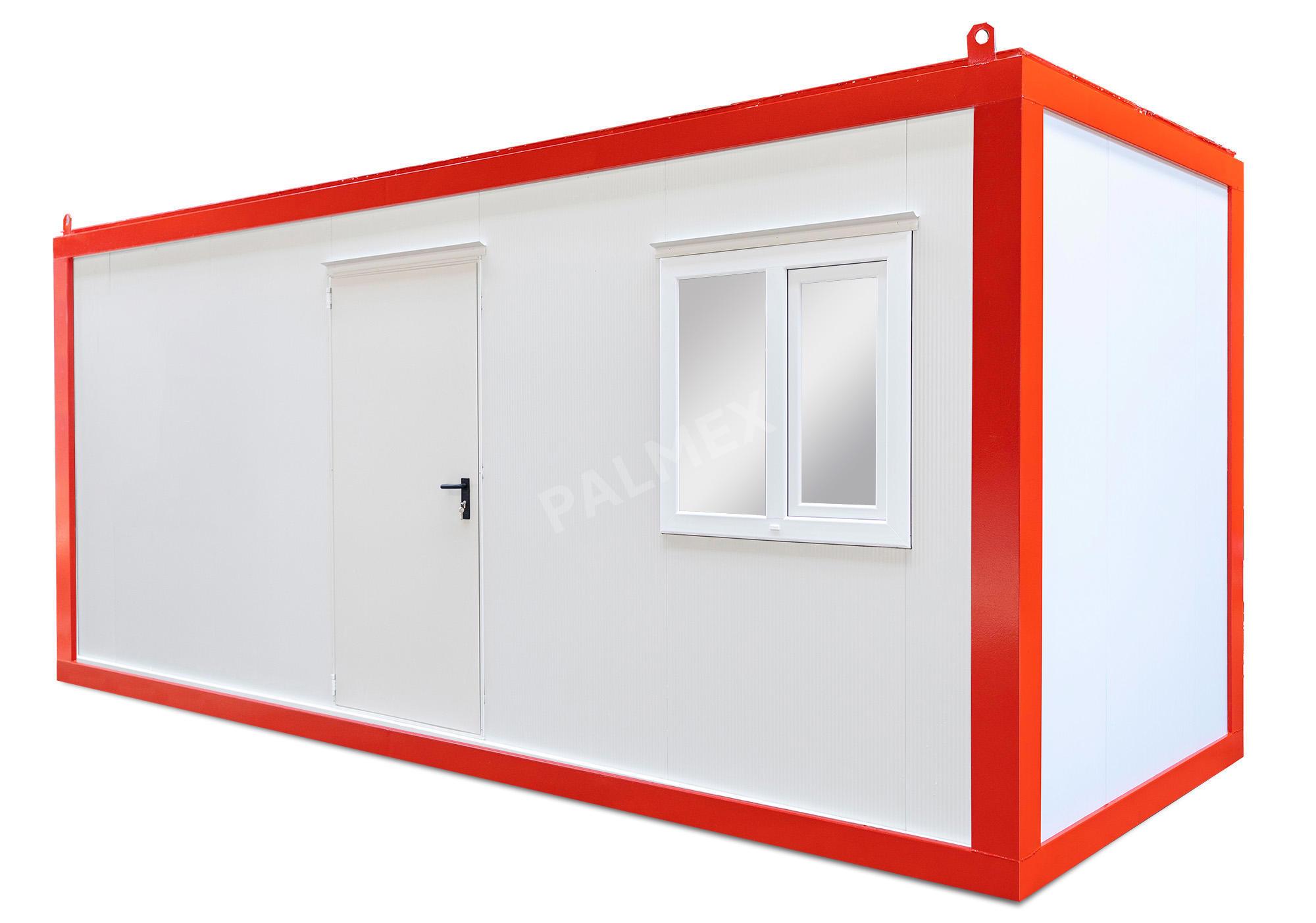

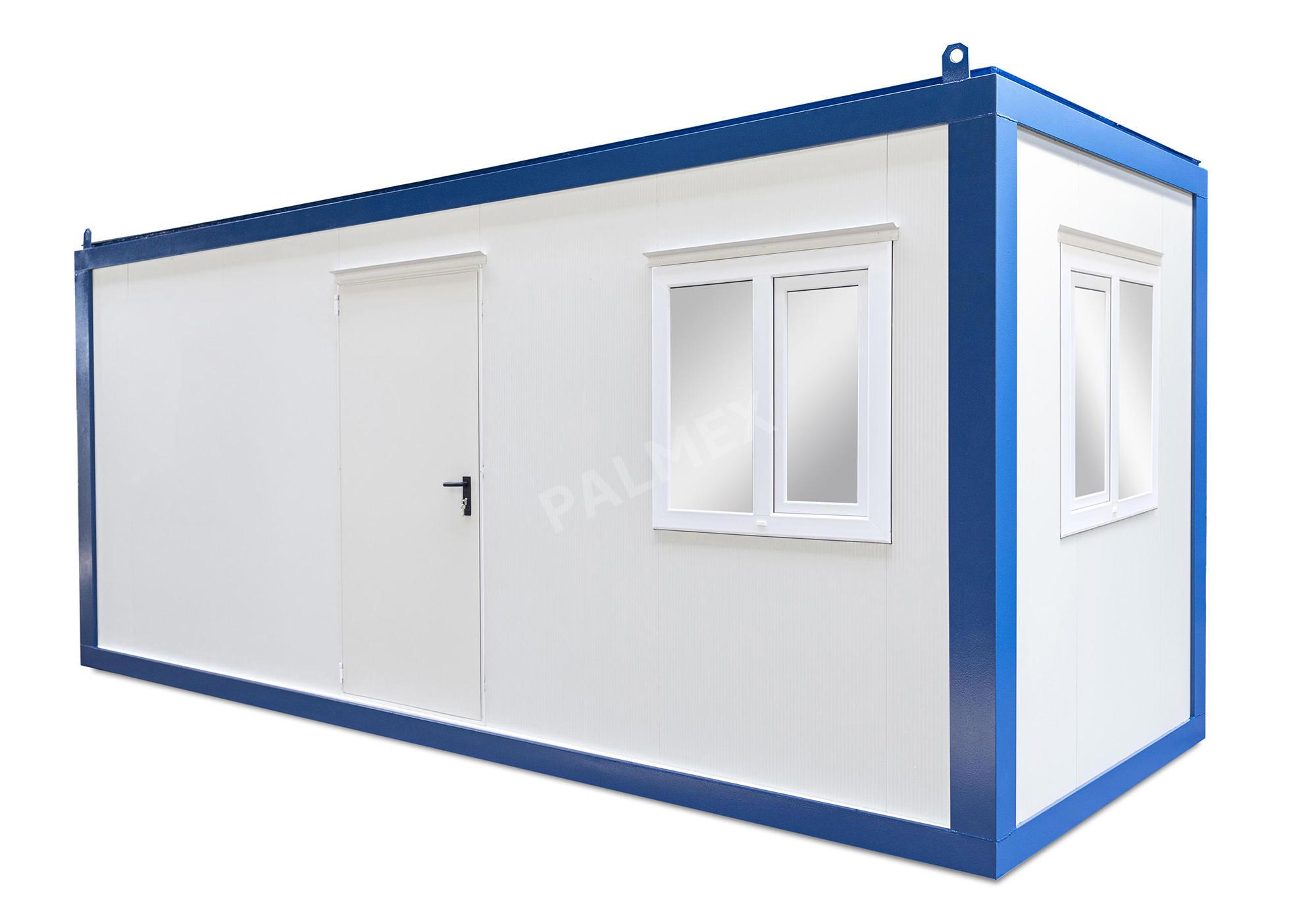

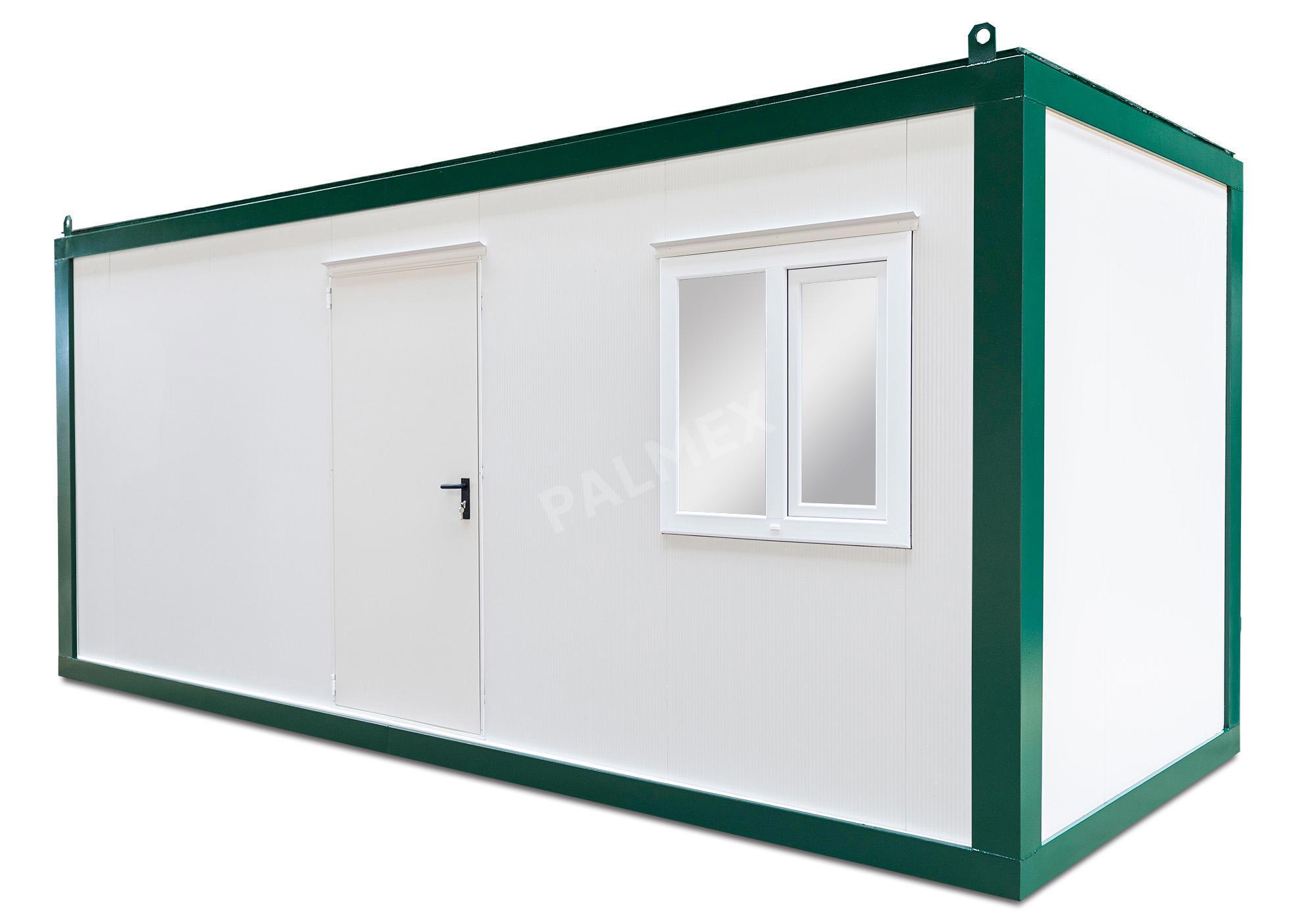

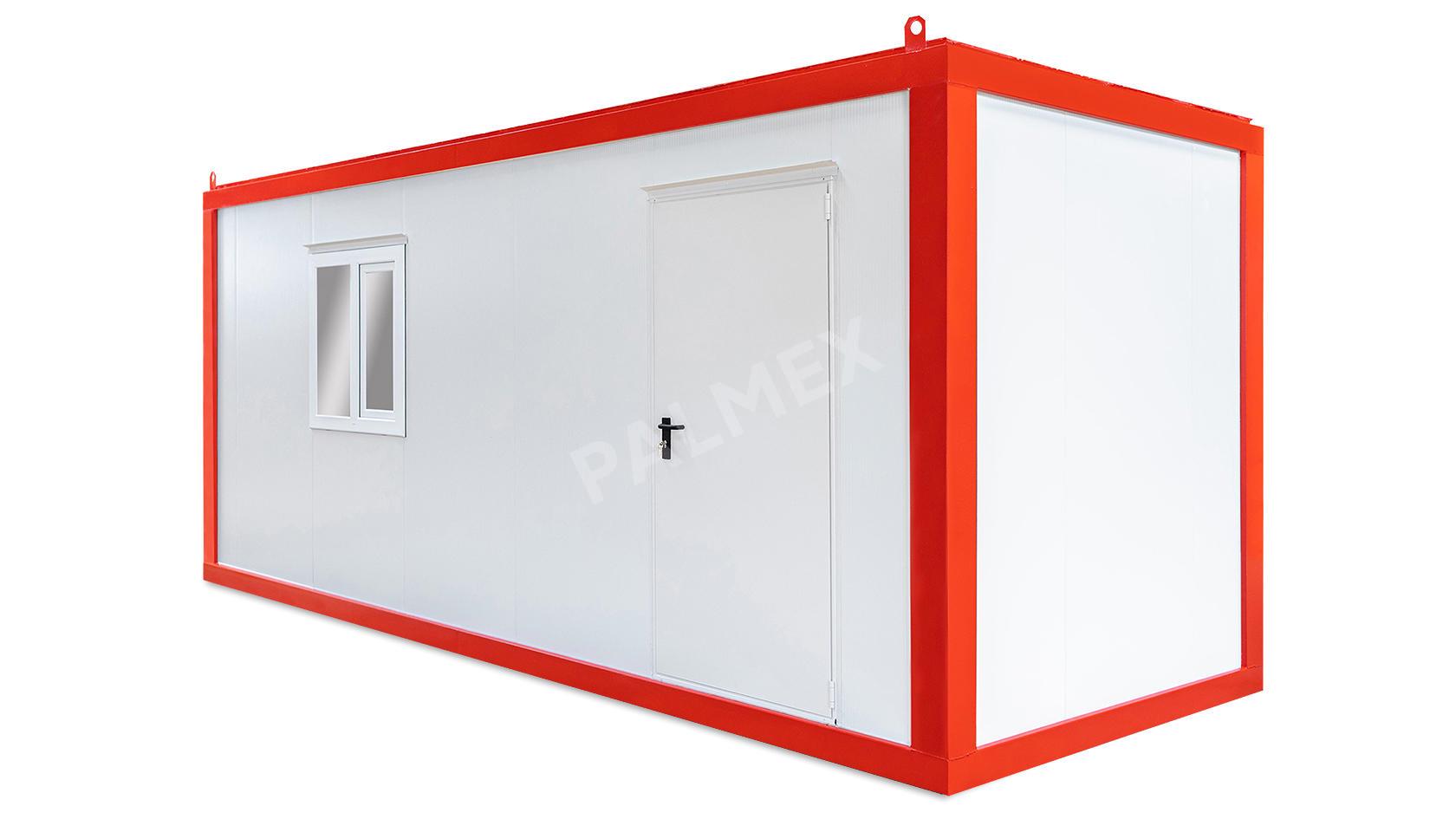

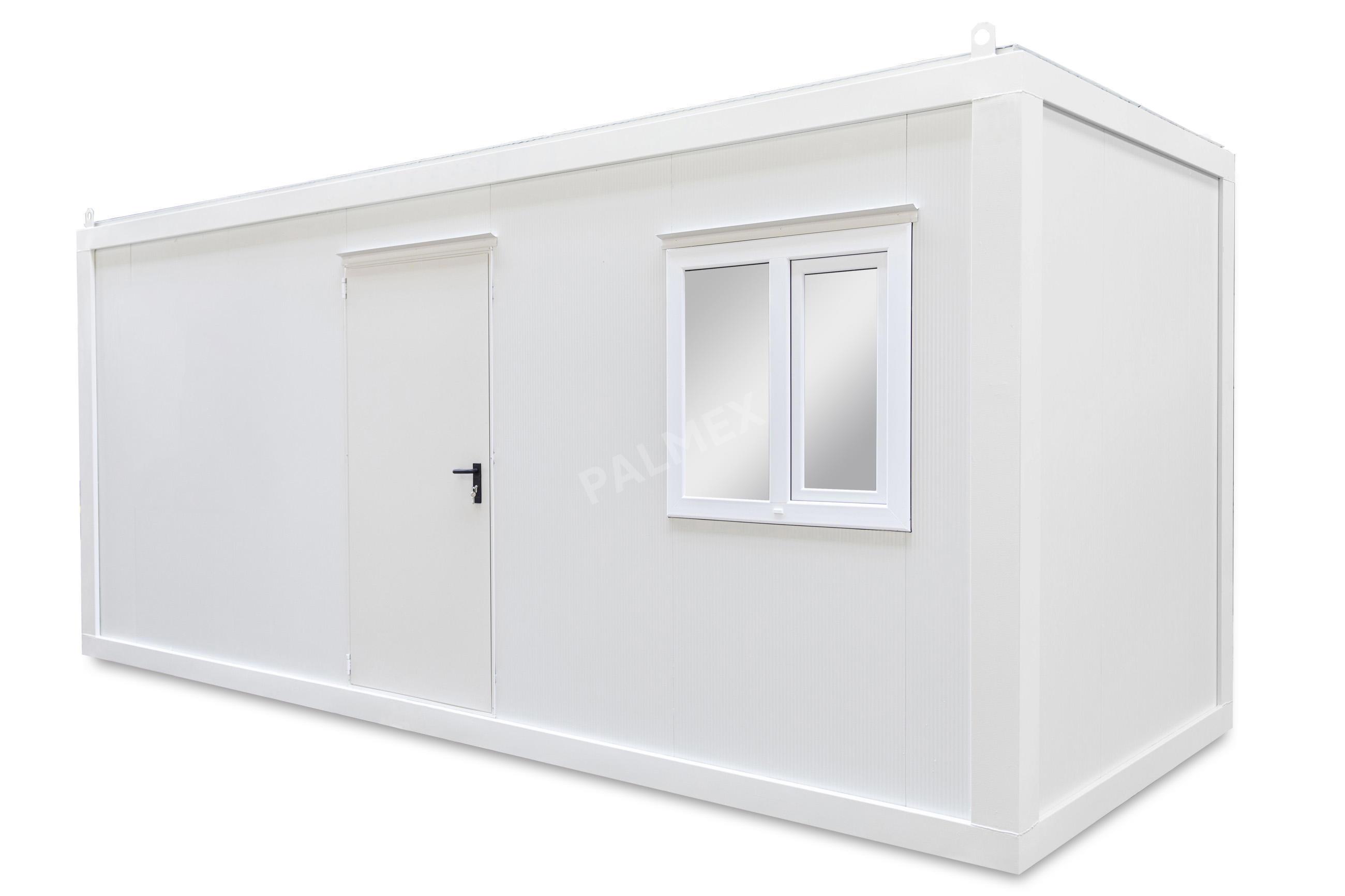

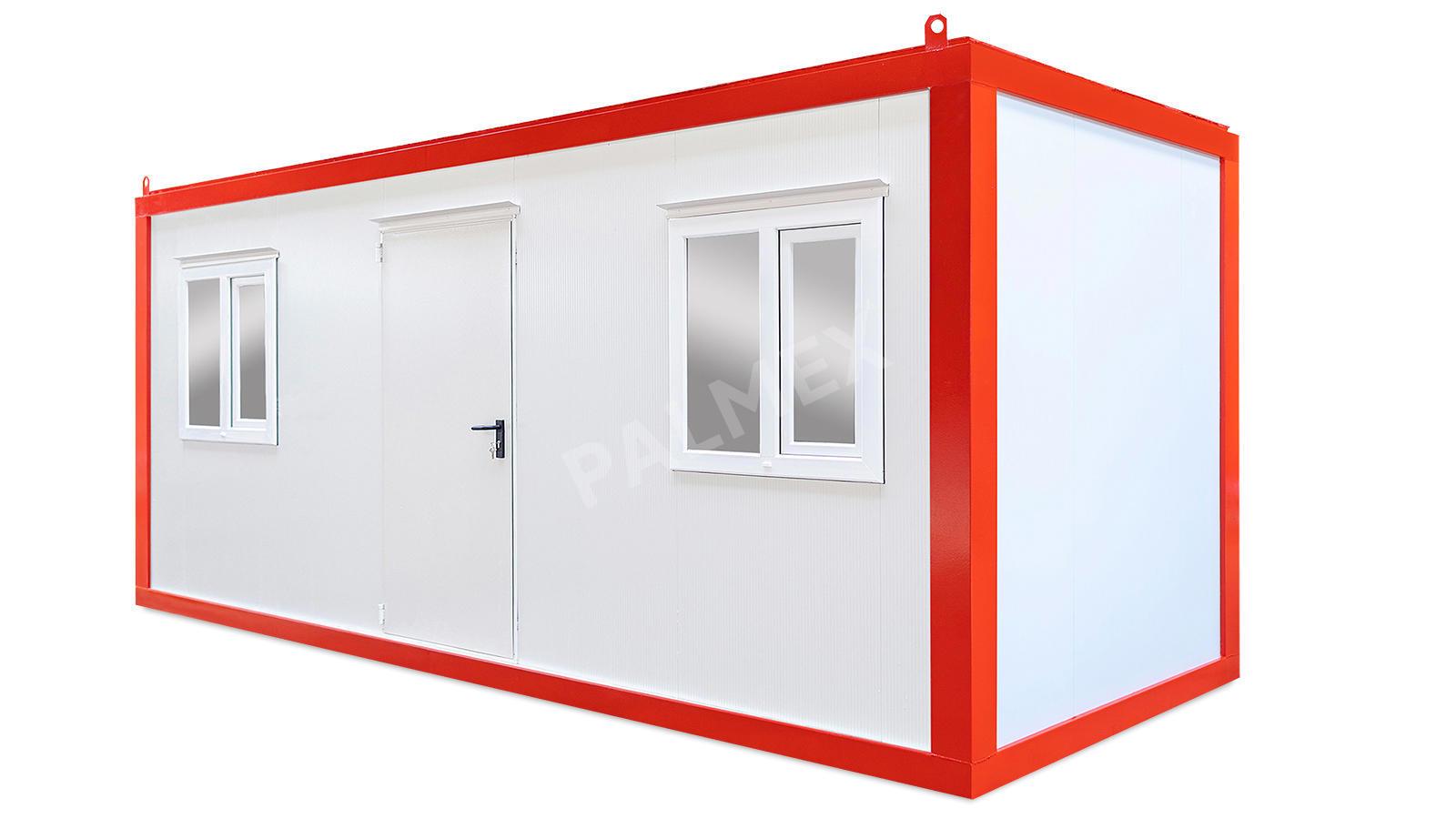

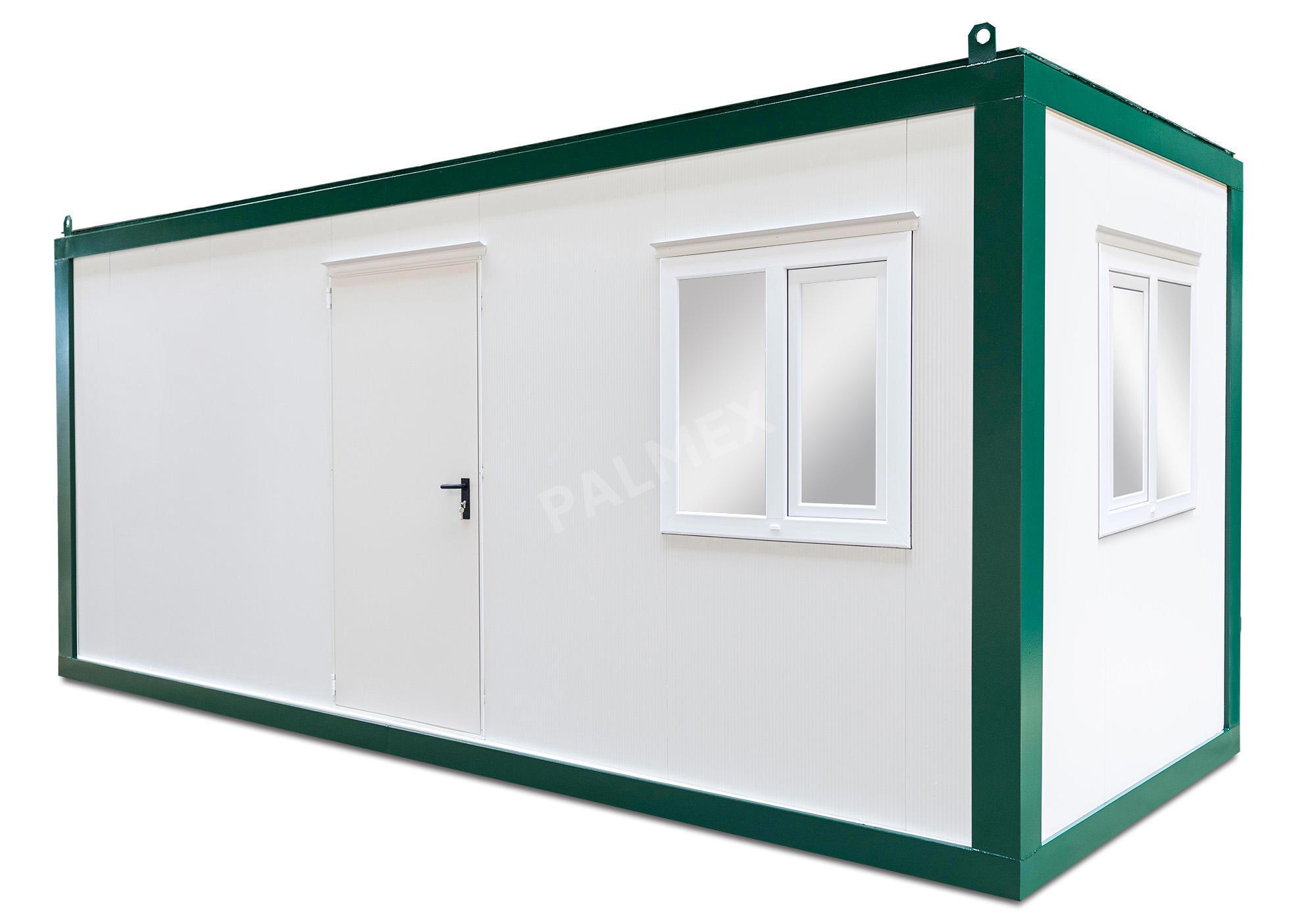

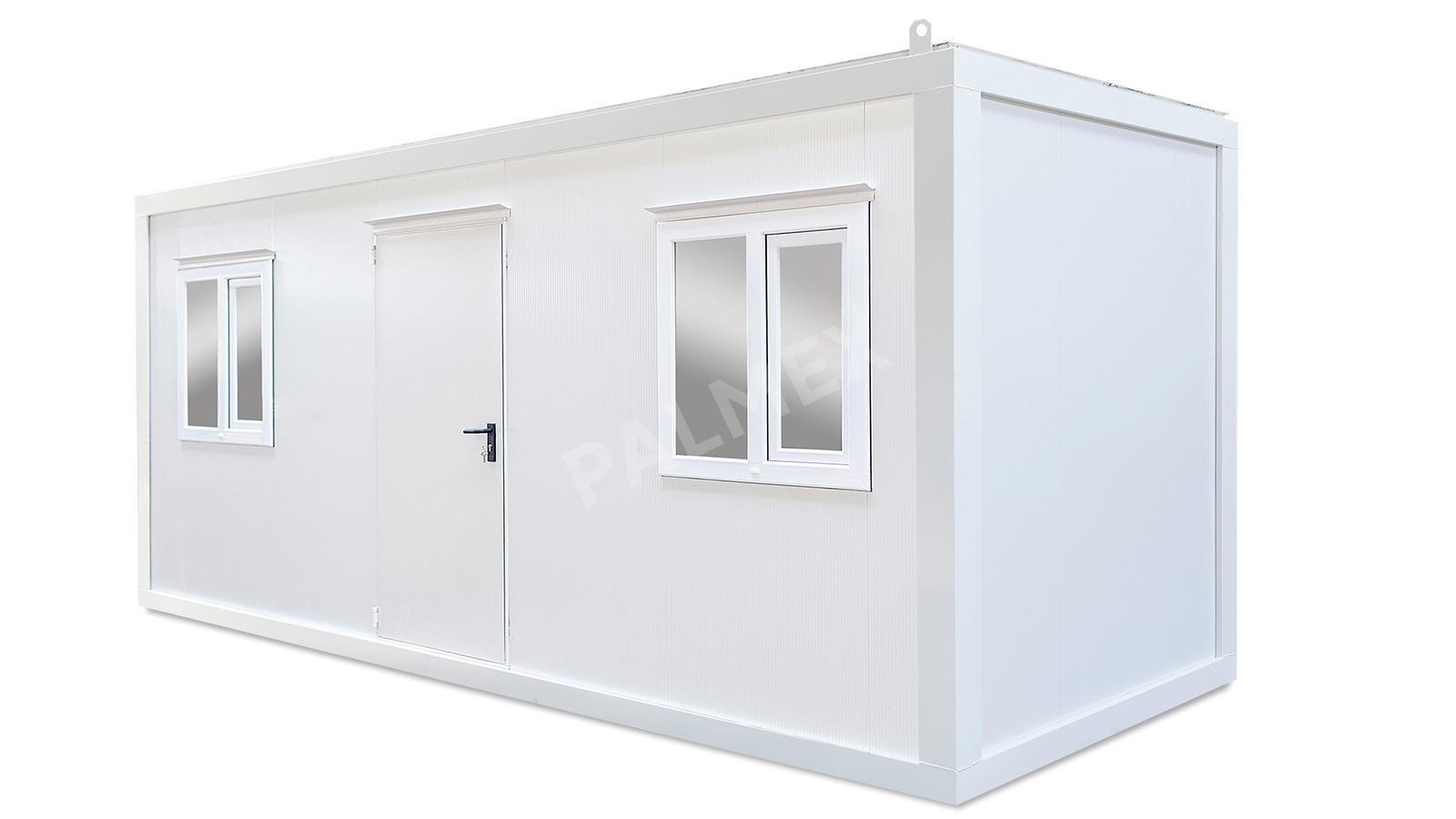

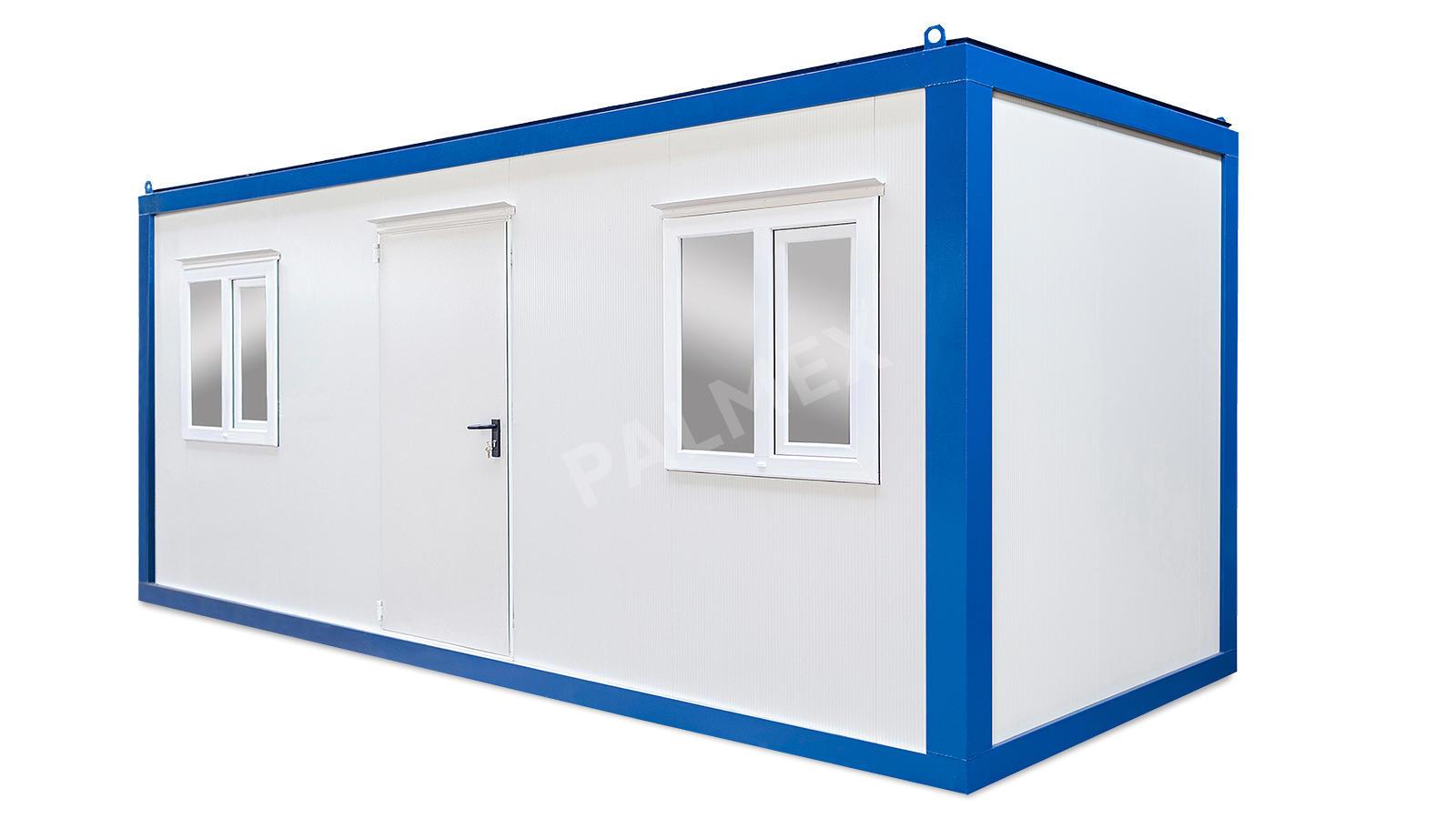

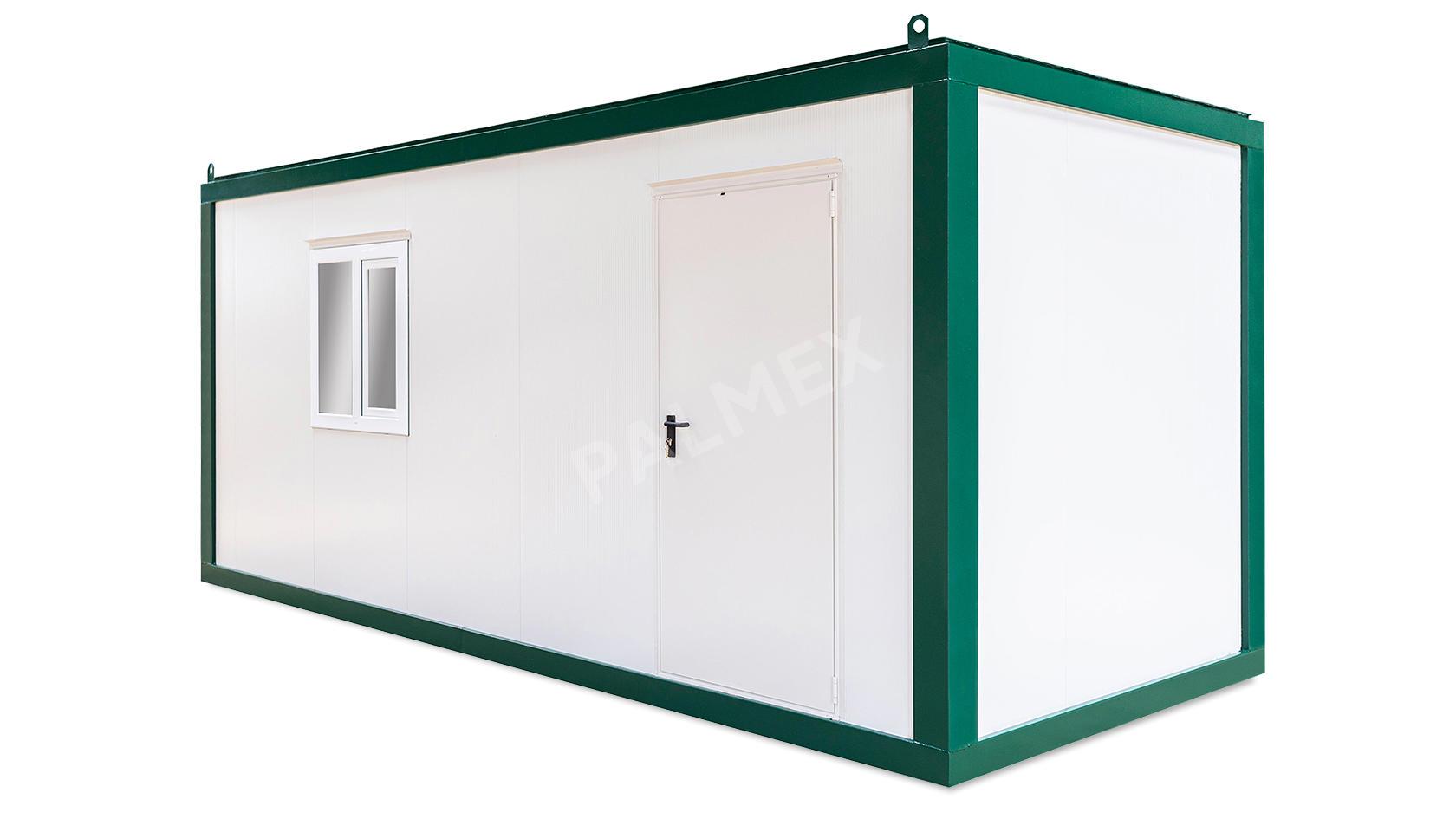

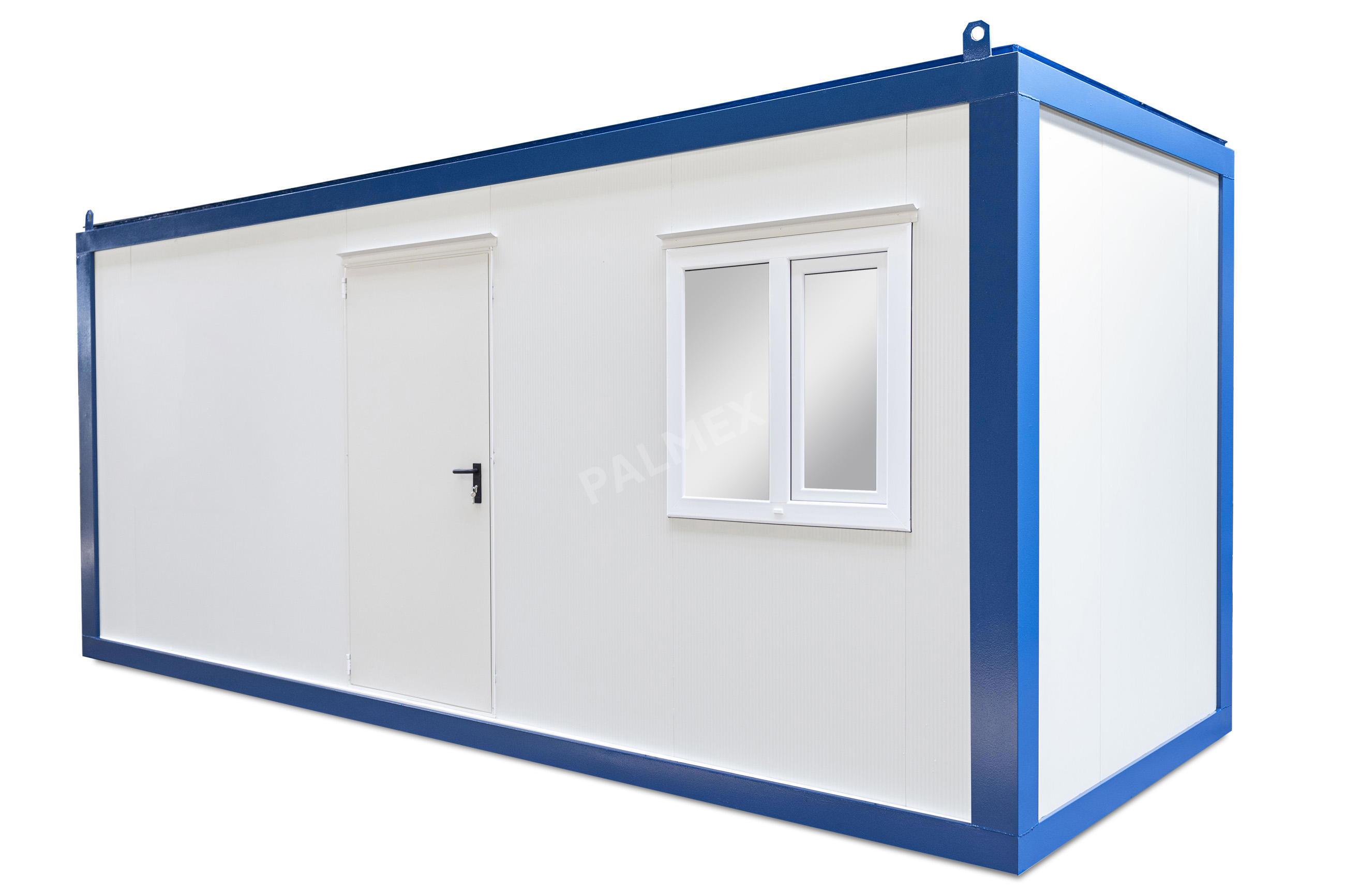

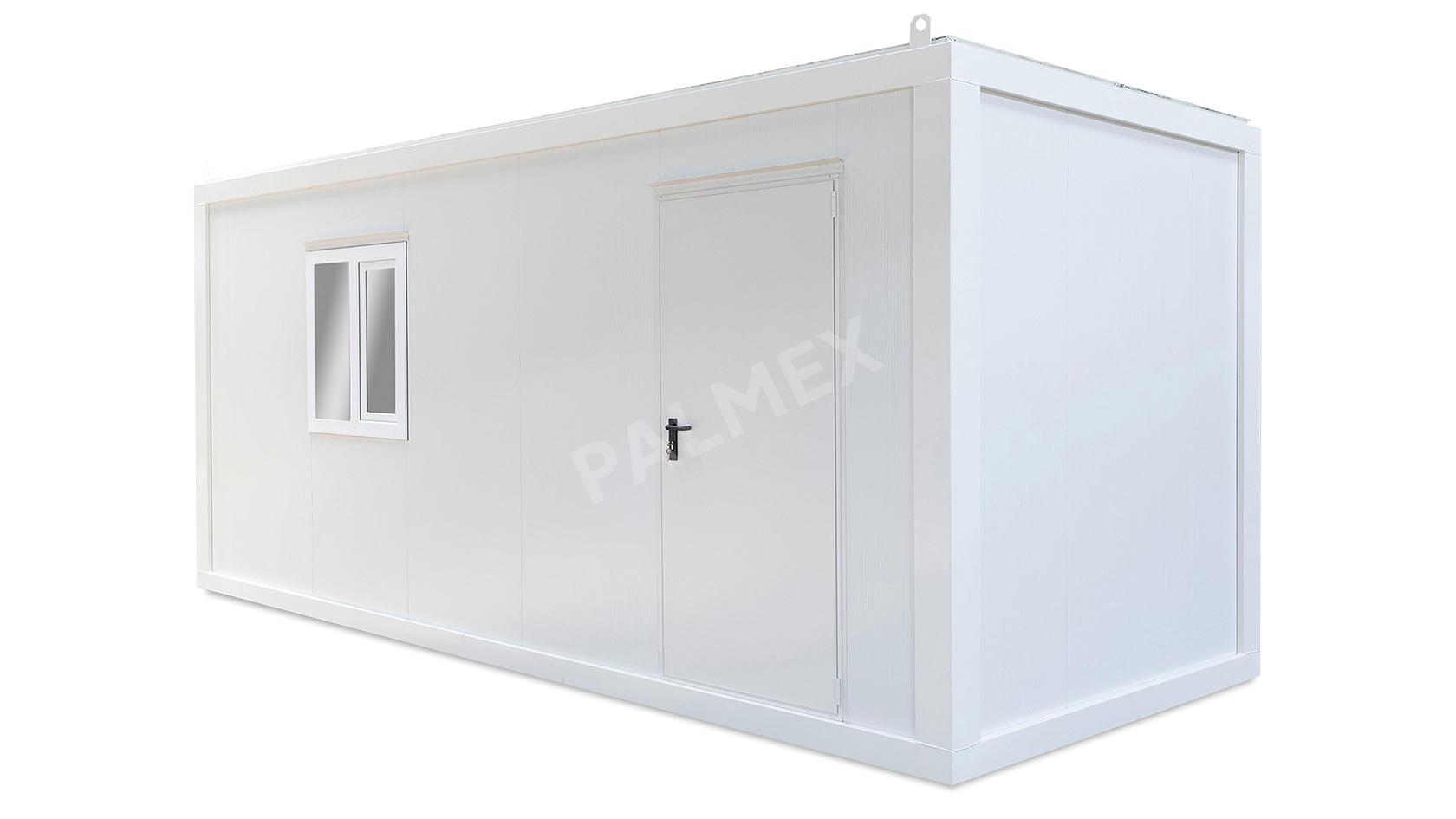

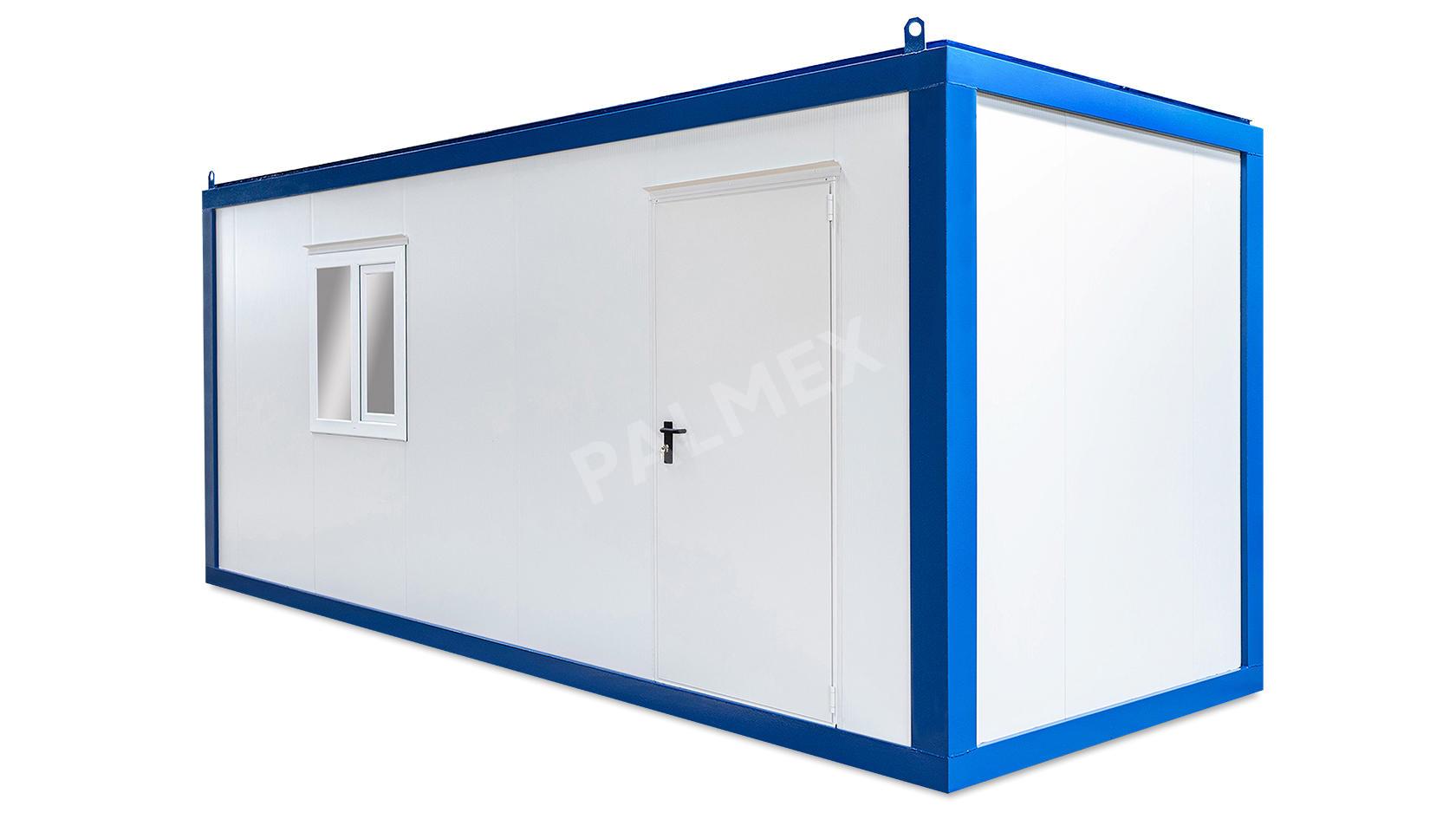

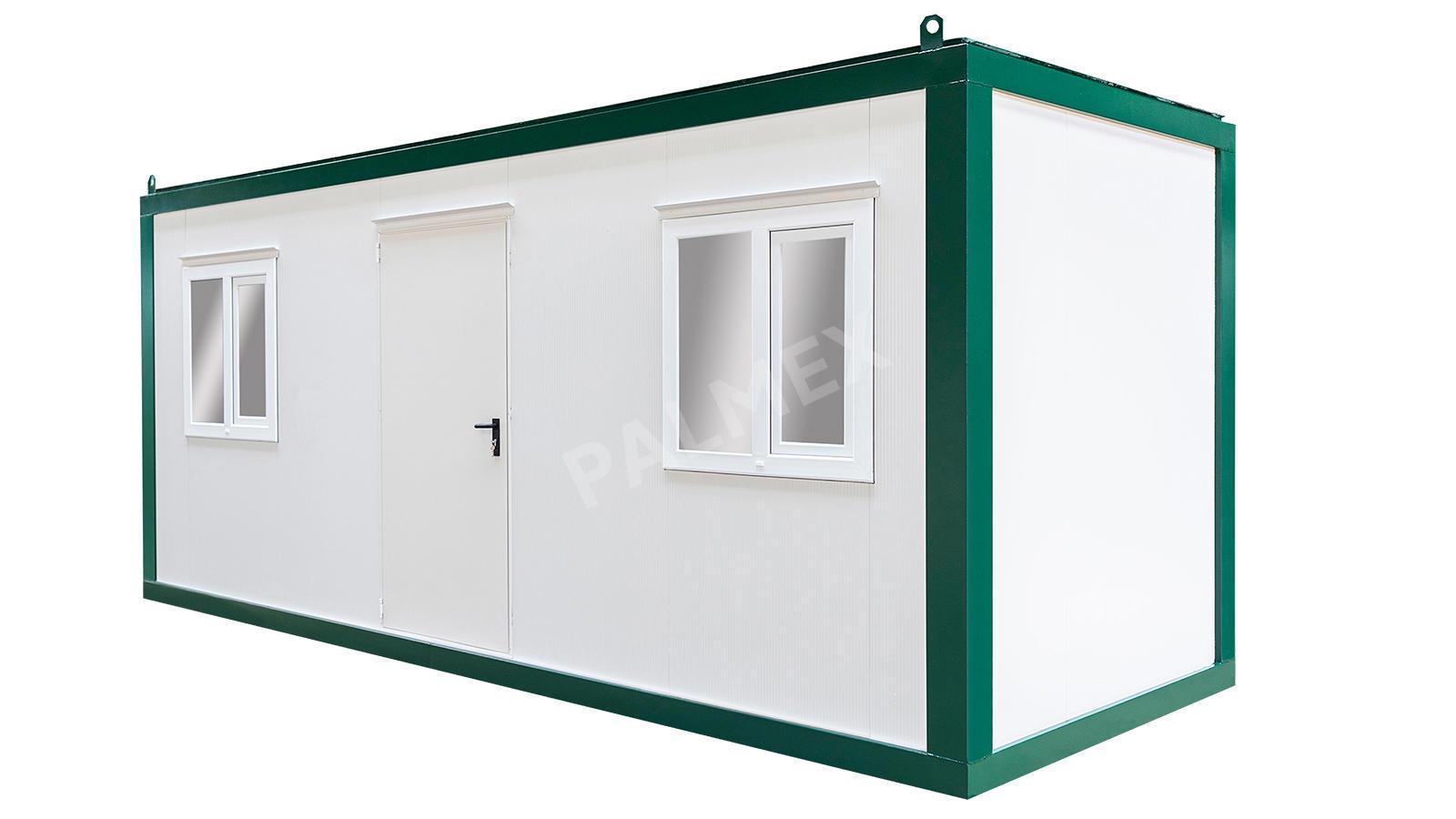

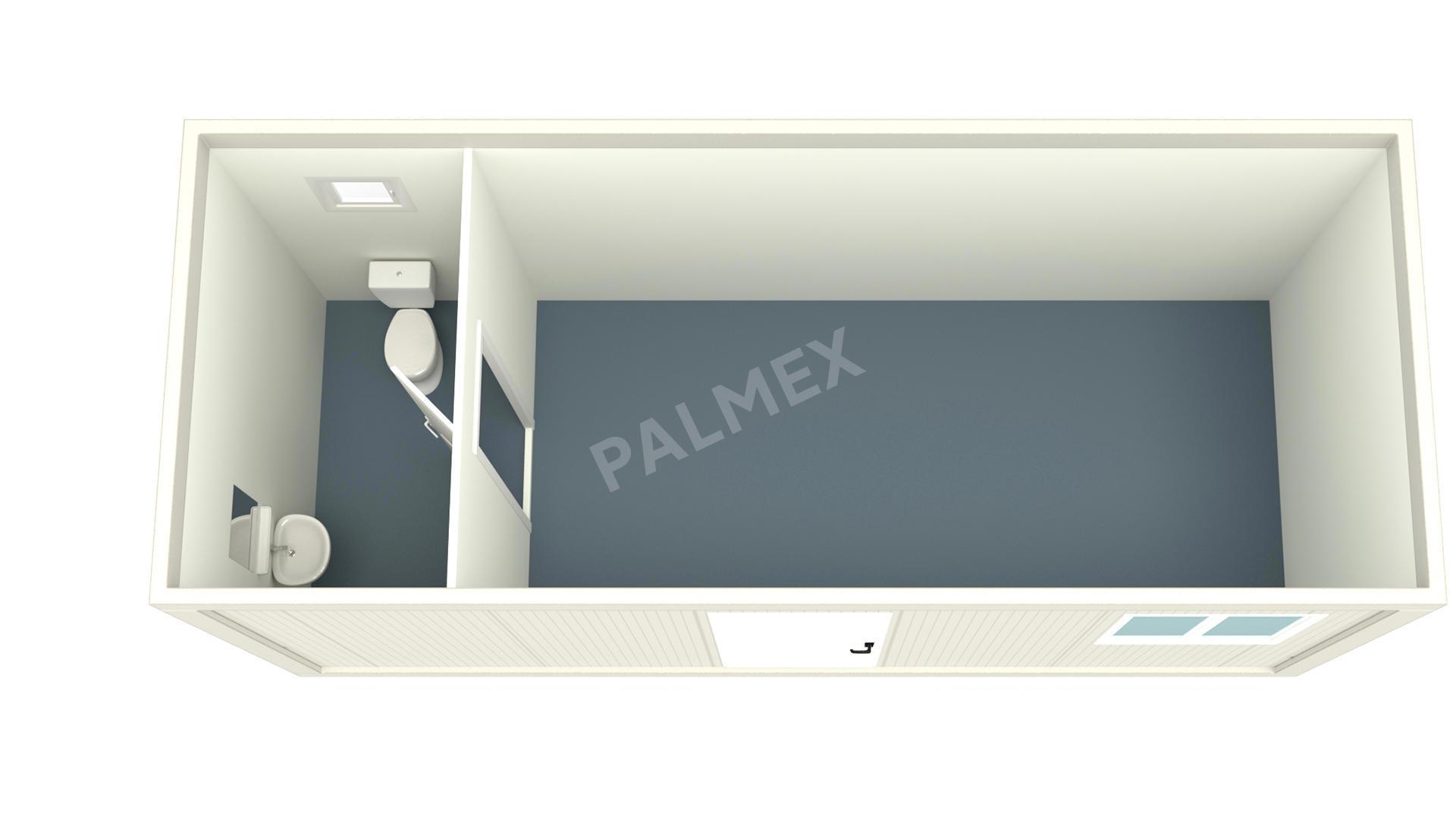

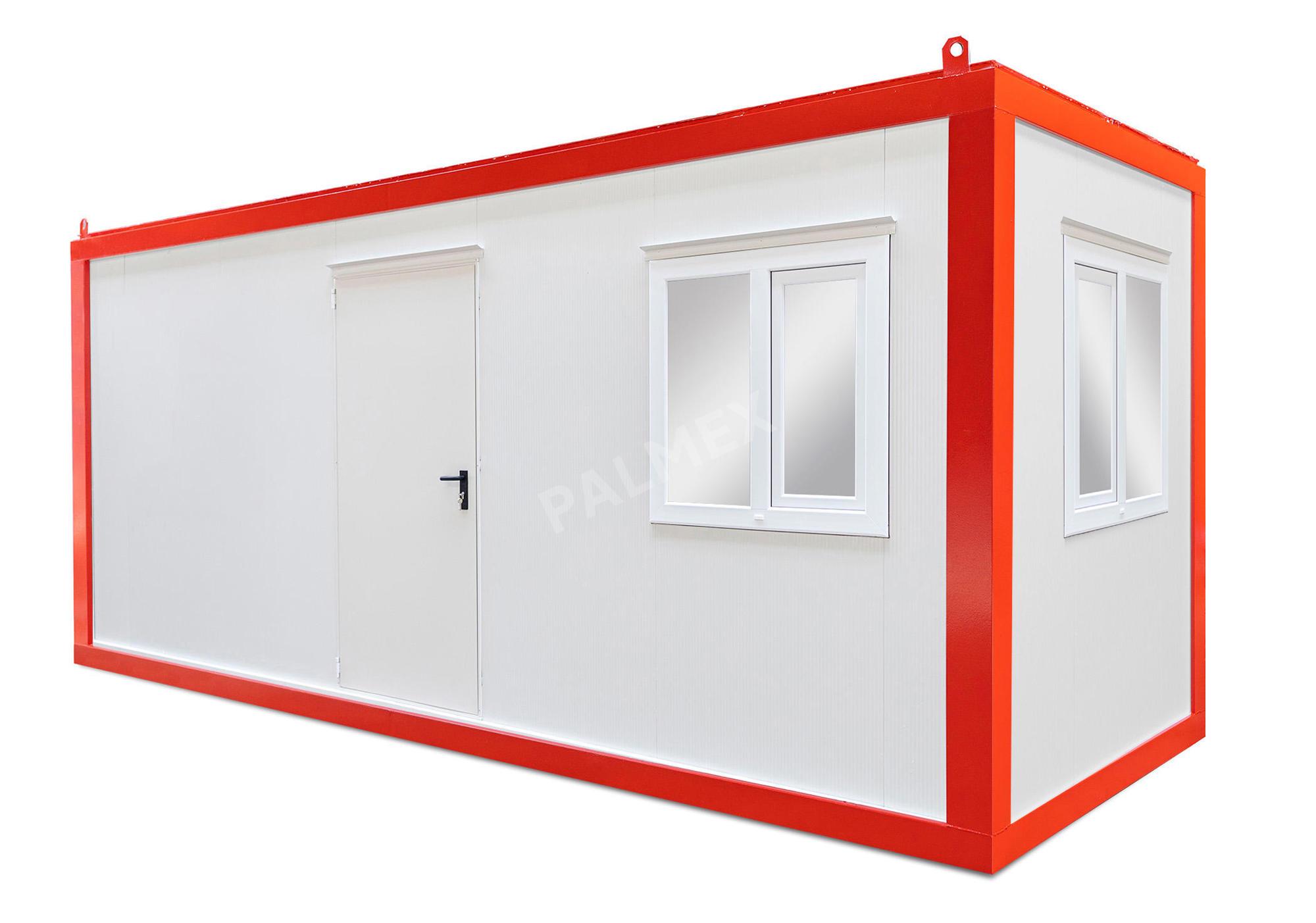

6m HI-FIX Site Container

• reinforced corrugated combined board (0.8 mm DX51);
• 3 mm cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
• 19 mm Moisture resistant Chipboard;
• Tarkett 2 mm PVC linoleum for heavy traffic;

Breaking strain: 400 kg/m².

• 2 mm cold profiled galvanized metal structure, reactive and painted primer according to the RAL palette;
• double-glazed galvanized sheet (0.5 mm);
• anti-condensation coating;
• 100 mm mineral wool, C1 ISOVER/Ursa norm;
• sandwich board 40 mm polyurethane;

Breaking strain: 250 kg/m².

Support beams are cold profiled, made of galvanized sheet, 2 mm thickness.
The superior frame has a section which allows the intake of rainwater and evacuation through the support beams.

Electrical installation

• 1 CEE 220-230 V tripolar socket with IP 65.

• automatic fuses box;
• 2 PT SHUKO double sockets;
• 1 PT SHUKO switch;
• 2 18 W LED lamp.

• type C 1 RAL 9002 40 mm sandwich polyurethane board (guaranteed for 10 years);
• 1 1000×2050 mm metallic RAL 9002 NINZ UNIVER door;
• 1 1000x1000 mm WHITE PVC tilt opening window (profile 6 KMG chambers);
